VEHICLES ARE DESIGNED FOR:
  • temporary storage, transportation of light petroleum products (LPG), as well as mobile refuelling of other vehicles on the road, in places where access to a filling station may be limited, for example, at construction sites, military bases, airports, fields and other remote sites
Find out the price

PRODUCT DESCRIPTION

It is possible to mount the equipment on chassis:
  • Ford
  • Howo
  • Sinotruk
  • Scania
  • Hyundai
  • Iveco
  • Volvo
  • MAN
  • Mercedes-Benz
  • Renault
  • JAC

Application: municipal services of cities and towns, petrol stations.


Purpose: temporary storage, transportation of light petroleum products (LPG), as well as mobile metered refuelling of other vehicles on the road, in places where access to a filling station may be limited, for example: at construction sites, military bases, airports, fields and other remote sites.

Main features:


  • Calibrated fuel tanker equipped with filler and inspection hatches.
  • Possibility of dividing the tank into equal or different sections, respectively, it is possible to transport and alternate metered dispensing of different types of fuel (diesel fuel and gasoline);
  • Sealed tank;
  • A specialised pumping system for pumping fuel from the truck using hoses;
  • Fuel leakage prevention mechanism to avoid potentially dangerous situations;
  • Metal chain on the rear protective device to prevent the accumulation of electrostatic charges during transport.
  • Stable operation at temperatures from -40°C to +40°C.
  • Filling level indicator in the neck.
  • Breather valve for pressure equalisation when the temperature rises or falls within the set limits.
  • Cone filter to prevent clogging of the pump.

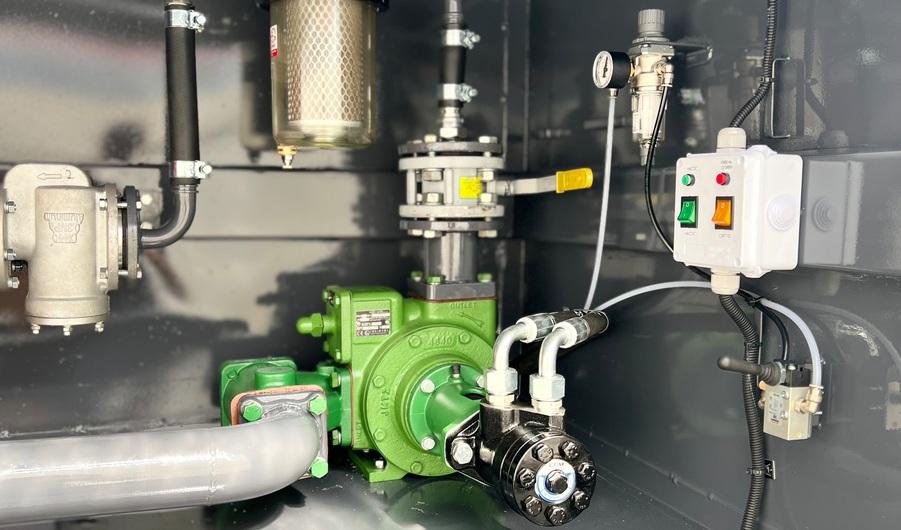

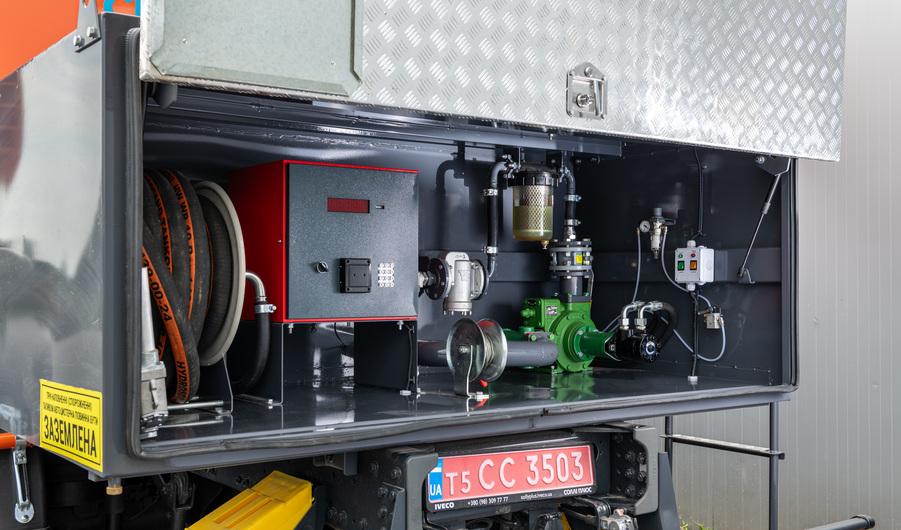

  • Technological box with the following equipment: grounding coil, filter, liquid meter, drain taps, shut-off valve for the dispensing gun, dispensing gun with a sleeve.
Main characteristics
Tank capacity m3 5 6 7 8 9 10 11 12 14 15 20
Pump capacity m3/h 750 750 750 750 750 750 750 750 750 750 750
Length mm 4400 3680 4100 4550 5000 5450 5900 6350 6100 6400 6400
Width mm 2050 2250 2250 2250 2250 2250 2250 2250 2350 2350 2520
Height mm 1500 1800 1800 1800 1800 1800 1800 1800 2100 2100 2300
Tank capacity
m3
Pump capacity
m3/h
Length
mm
Width
mm
Height
mm
Tank capacity
5
Pump capacity
750
Length
4400
Width
2050
Height
1500
Tank capacity
6
Pump capacity
750
Length
3680
Width
2250
Height
1800
Tank capacity
7
Pump capacity
750
Length
4100
Width
2250
Height
1800
Tank capacity
8
Pump capacity
750
Length
4550
Width
2250
Height
1800
Tank capacity
9
Pump capacity
750
Length
5000
Width
2250
Height
1800
Tank capacity
10
Pump capacity
750
Length
5450
Width
2250
Height
1800
Tank capacity
11
Pump capacity
750
Length
5900
Width
2250
Height
1800
Tank capacity
12
Pump capacity
750
Length
6350
Width
2250
Height
1800
Tank capacity
14
Pump capacity
750
Length
6100
Width
2350
Height
2100
Tank capacity
15
Pump capacity
750
Length
6400
Width
2350
Height
2100
Tank capacity
20
Pump capacity
750
Length
6400
Width
2520
Height
2300
