VEHICLES ARE DESIGNED FOR:
  • preventive sanitary cleaning of rainwater inlets (wells), storm and sewer networks and reservoirs, sumps from silt, sediment, soil sediments and other contaminants and their transportation to the place of unloading
Find out the price

PRODUCT DESCRIPTION

It is possible to mount the equipment on chassis:
  • Ford
  • Howo
  • Sinotruk
  • Scania
  • Hyundai
  • Iveco
  • Volvo
  • MAN
  • Mercedes-Benz
  • Renault
  • JAC
  • Isuzu
  • Dong Feng.

Application area: municipal services of cities and towns.

Purpose: preventive sanitary cleaning of rainwater inlets (wells), storm and sewer networks and reservoirs, sumps from silt, sediment, soil sediments and other contaminants and their transportation to the place of unloading.

Main features:

  • Workflowcontrol from the remote panel allows you to manage the process safely and conveniently.
  • Theboom with a suction pipe and its extension, which can be rotated around its axis by 270°, raised by 55°, lowered from the horizontal by 15° and locked against arbitrary rotation, provides the ability to reach inaccessible places and perform work at a considerable distance from wells or sumps;
  • The sludge is unloaded from the tank by tipping method;
  • Stainless steel chute inside the tank to facilitate sludge discharge;
  • Suction hoses are made of modern high quality material to ensure durable and reliable operation;

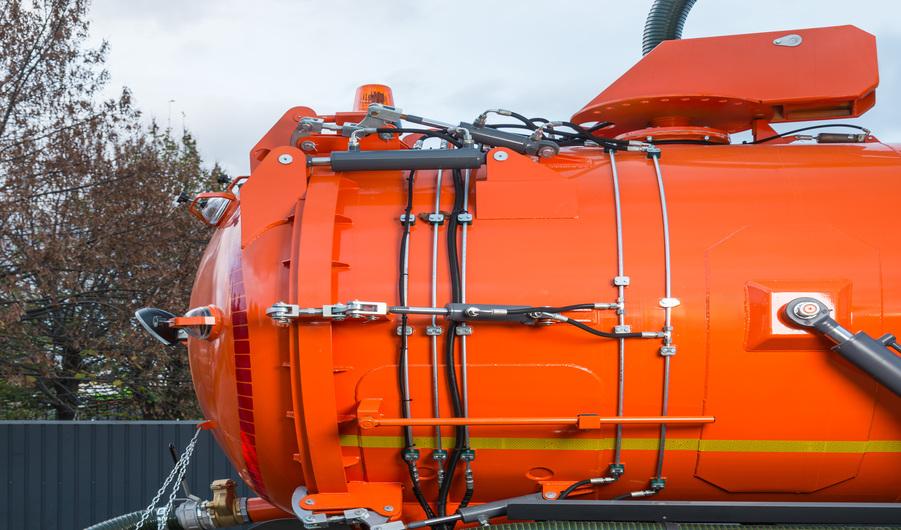

  • Special sealing rubber profiles ensure the tightness of the tank;
  • Automatic engine shutdown, thanks to a signal and safety device (on diesel machines, an audible signal is given), when the maximum level of tank filling is reached;
  • A safety valve is provided to limit the pressure to more than 0.03 MPa;

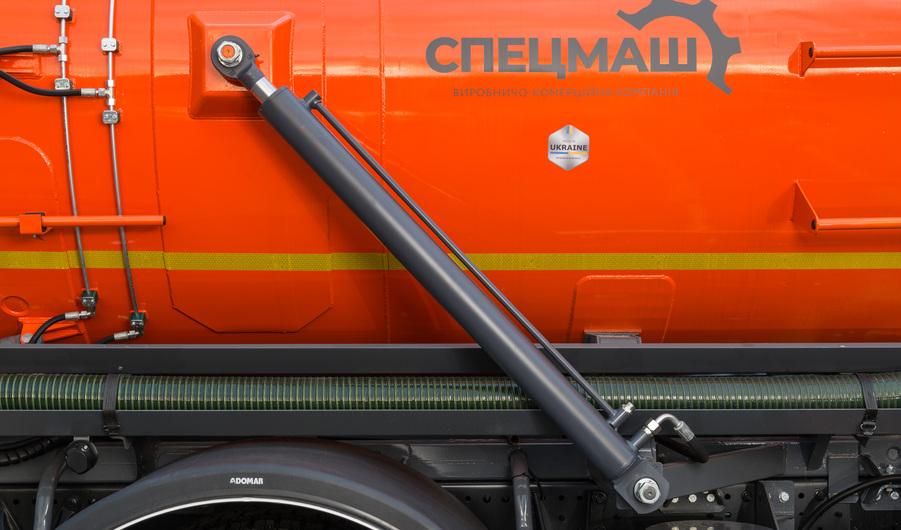

  • The angle of elevation of the tank is up to 45 degrees;
  • Possibility to drain the sludge water through the boom in order to facilitate the transportation of sludge masses to the place of their unloading;
  • Possibility of using the bubbling method, which increases the suction depth to 16 meters.


Complete set:

  • Tank
  • Safety device
  • The pump with vacuum force system
  • Intake hatch
  • Suction beams
  • Pipelines
  • Pneumatic and electric system
  • The boom with a suction pipe

Main characteristics
Tank volume м3 4 8 10 12
Pump capacity m3/h, not more than 744 744 744 744
Weight of special equipment kg 2390 3120 4300 4600
Maximum vacuum created by the vacuum pump MPa, not less than 0,085 0,085 0,085 0,085
Maximum suction depth m, not less than 6,5 6,5 6,5 6,5
Tank lifting angle degree, not less than 45 45 45 45
Tank filling speed min, not more than 45447 45510 45572 45604
Tank emptying speed by gravity m3/h, not less than 35 35 35 35
Length (L) mm 3800 4620 5550 5900
Diameter (D) mm 1200 1600 1600 1800
Tank volume
м3
Pump capacity
m3/h, not more than
Weight of special equipment
kg
Maximum vacuum created by the vacuum pump
MPa, not less than
Maximum suction depth
m, not less than
Tank lifting angle
degree, not less than
Tank filling speed
min, not more than
Tank emptying speed by gravity
m3/h, not less than
Length (L)
mm
Diameter (D)
mm
Tank volume
4
Pump capacity
744
Weight of special equipment
2390
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6,5
Tank lifting angle
45
Tank filling speed
45447
Tank emptying speed by gravity
35
Length (L)
3800
Diameter (D)
1200
Tank volume
8
Pump capacity
744
Weight of special equipment
3120
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6,5
Tank lifting angle
45
Tank filling speed
45510
Tank emptying speed by gravity
35
Length (L)
4620
Diameter (D)
1600
Tank volume
10
Pump capacity
744
Weight of special equipment
4300
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6,5
Tank lifting angle
45
Tank filling speed
45572
Tank emptying speed by gravity
35
Length (L)
5550
Diameter (D)
1600
Tank volume
12
Pump capacity
744
Weight of special equipment
4600
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6,5
Tank lifting angle
45
Tank filling speed
45604
Tank emptying speed by gravity
35
Length (L)
5900
Diameter (D)
1800
