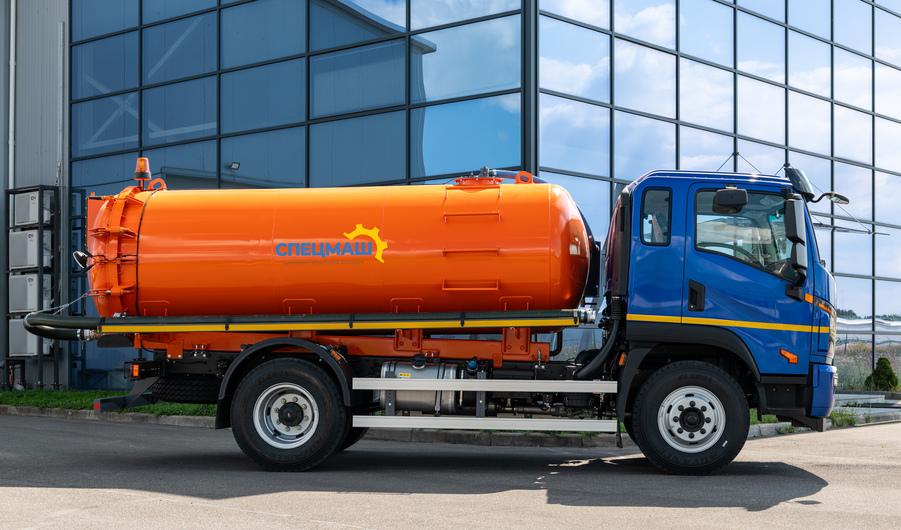

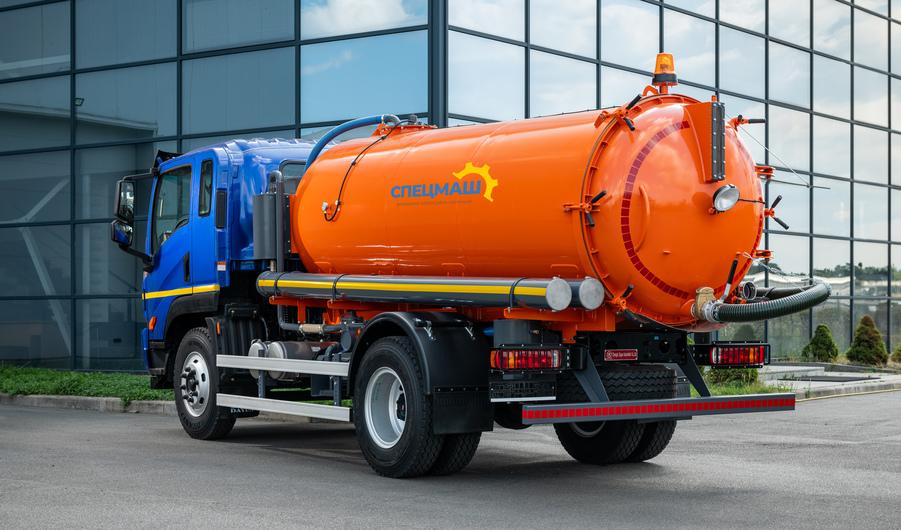

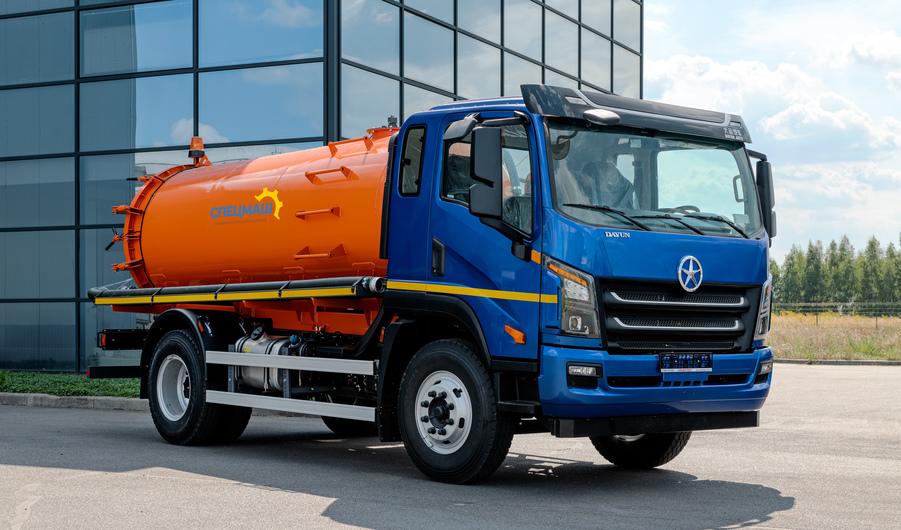

SEWER VACUUM TRUCKS
VEHICLES ARE DESIGNED FOR:
- vacuum sanitary cleaning of cesspools, sewer wells, and non-sewerized settlements from sewage, dirt, and fecal matter, with their further transportation and unloading at liquid waste disposal sites
PRODUCT DESCRIPTION
It is possible to mount the equipment on chassis:
- Ford
- Howo
- JAC
- Sinotruk
- Scania
- Hyundai
- Iveco
- Volvo
- MAN
- Mercedes-Benz
- Renault
- JAC
- Isuzu.
Area of application: municipal services of cities and towns.
Purpose: vacuum sanitary cleaning of cesspools, sewer wells, non-sewerized settlements from sewage, dirt, fecal matter, with their subsequent transportation and unloading in places of liquid waste disposal.
Main features:
- Filling the tank with liquid waste, thanks to the creation of a liquefaction effect.
- Automatic engine shutdown, thanks to a signal and safety device (on diesel machines, an audible signal is given), when the maximum level of tank filling is reached.
- A four-way valve controls the filling and emptying operations of the tank.
- Tank emptying by gravity and under pressure.
- Special headlight to illuminate the operator's workplace in the dark.
- High-quality painting of all components and parts, which prevents corrosion and ensures the reliability and durability of metal structures.
- Inspection windows for monitoring the process of filling the tank.
- Operation attemperatures from - 20C to + 40C.
- A float valve that shuts off the suction line when the tank is filled and prevents waste from entering the pump.
- A sump in the suction line is designed to collect condensate. Silencer in the pump discharge line to reduce noise when air is discharged from the pump.
- Thesuction pitdepth is 5-6 meters.
The complete set:
- Tank

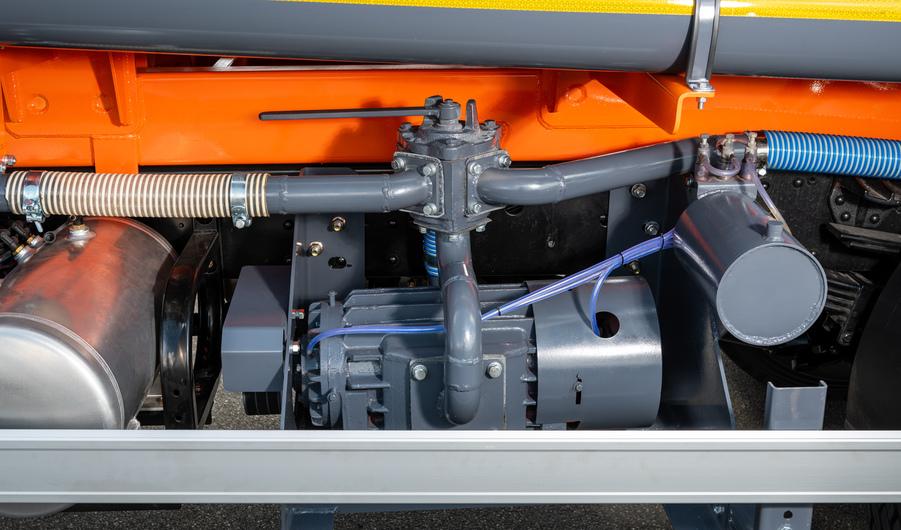

- Vacuum pump with drive
- Signaling and safety device
- Pipelines of the vacuum injection system with 4-way valve
- Suction hatch with suction hose
- Service platforms
- Electrical equipment.
Main characteristics
| Tank volume | м3 | 3 | 4 | 5 | 6 | 9 | 10 | 12 | 13 | 15 | 20 | 22 |
| Pump capacity | m3/h | 432 | 432 | 432 | 432 | 744 | 744 | 744 | 744 | 744 | 744 | 744 |
| Maximum vacuum created by the vacuum pump | Mpa | 0,085 | 0,085 | 0,085 | 0,085 | 0,085 | 0,085 | 0,085 | 0,085 | 0,085 | 0,085 | 0,085 |
| Maximum suction depth | m, not more than | 6 (16) | 6 (16) | 6 (16) | 6 (16) | 6 (16) | 6 (16) | 6 (16) | 6 (16) | 6 (16) | 6 (16) | 6 (16) |
| Tank filling speed | min, not more than | 5-7 | 5-7 | 6-8 | 6-8 | 7-10 | 7-10 | 12-14 | 12-14 | 12-14 | 14-16 | 14-16 |
| Tank emptying speed by gravity | m3/h, not less than | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
| Length (L) | mm | 4050 | 5200/3600 | 4600/3800 | 5600/4500 | 4900 | 5400 | 6400/5520 | 5920 | 6720 | 7200/5000 | 5500 |
| Diameter (D) | mm | 1000 | 1000/1200 | 1200/1400 | 1200/1400 | 1600 | 1600 | 1600/1800 | 1800 | 1800 | 2000/2200 | 2200 |
| Weight | kg | 1190 | 1310/1250 | 1400/1550 | 1550/1700 | 2250 | 2450 | 2860/3100 | 3250 | 3700 | 3800 | 4200 |
Tank volume
м3
Pump capacity
m3/h
Maximum vacuum created by the vacuum pump
Mpa
Maximum suction depth
m, not more than
Tank filling speed
min, not more than
Tank emptying speed by gravity
m3/h, not less than
Length (L)
mm
Diameter (D)
mm
Weight
kg
Tank volume
3
Pump capacity
432
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6 (16)
Tank filling speed
5-7
Tank emptying speed by gravity
35
Length (L)
4050
Diameter (D)
1000
Weight
1190
Tank volume
4
Pump capacity
432
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6 (16)
Tank filling speed
5-7
Tank emptying speed by gravity
35
Length (L)
5200/3600
Diameter (D)
1000/1200
Weight
1310/1250
Tank volume
5
Pump capacity
432
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6 (16)
Tank filling speed
6-8
Tank emptying speed by gravity
35
Length (L)
4600/3800
Diameter (D)
1200/1400
Weight
1400/1550
Tank volume
6
Pump capacity
432
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6 (16)
Tank filling speed
6-8
Tank emptying speed by gravity
35
Length (L)
5600/4500
Diameter (D)
1200/1400
Weight
1550/1700
Tank volume
9
Pump capacity
744
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6 (16)
Tank filling speed
7-10
Tank emptying speed by gravity
35
Length (L)
4900
Diameter (D)
1600
Weight
2250
Tank volume
10
Pump capacity
744
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6 (16)
Tank filling speed
7-10
Tank emptying speed by gravity
35
Length (L)
5400
Diameter (D)
1600
Weight
2450
Tank volume
12
Pump capacity
744
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6 (16)
Tank filling speed
12-14
Tank emptying speed by gravity
35
Length (L)
6400/5520
Diameter (D)
1600/1800
Weight
2860/3100
Tank volume
13
Pump capacity
744
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6 (16)
Tank filling speed
12-14
Tank emptying speed by gravity
35
Length (L)
5920
Diameter (D)
1800
Weight
3250
Tank volume
15
Pump capacity
744
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6 (16)
Tank filling speed
12-14
Tank emptying speed by gravity
35
Length (L)
6720
Diameter (D)
1800
Weight
3700
Tank volume
20
Pump capacity
744
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6 (16)
Tank filling speed
14-16
Tank emptying speed by gravity
35
Length (L)
7200/5000
Diameter (D)
2000/2200
Weight
3800
Tank volume
22
Pump capacity
744
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6 (16)
Tank filling speed
14-16
Tank emptying speed by gravity
35
Length (L)
5500
Diameter (D)
2200
Weight
4200
