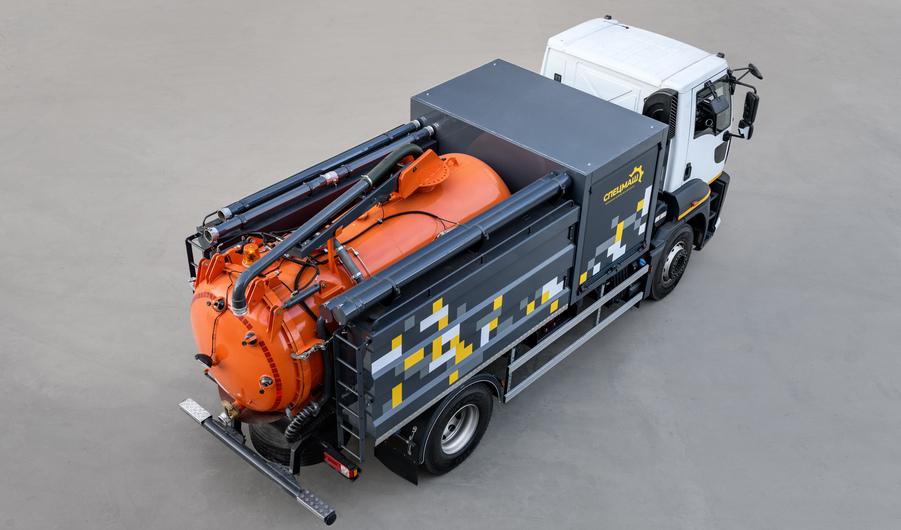

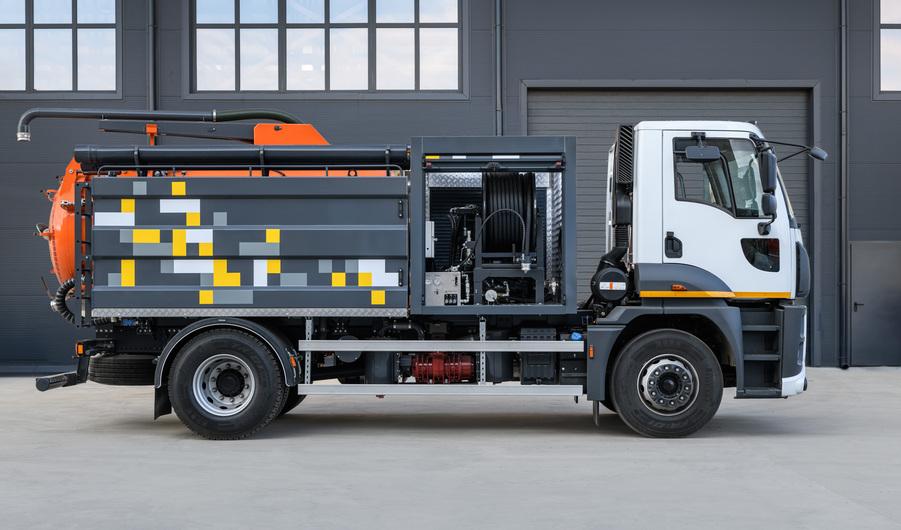

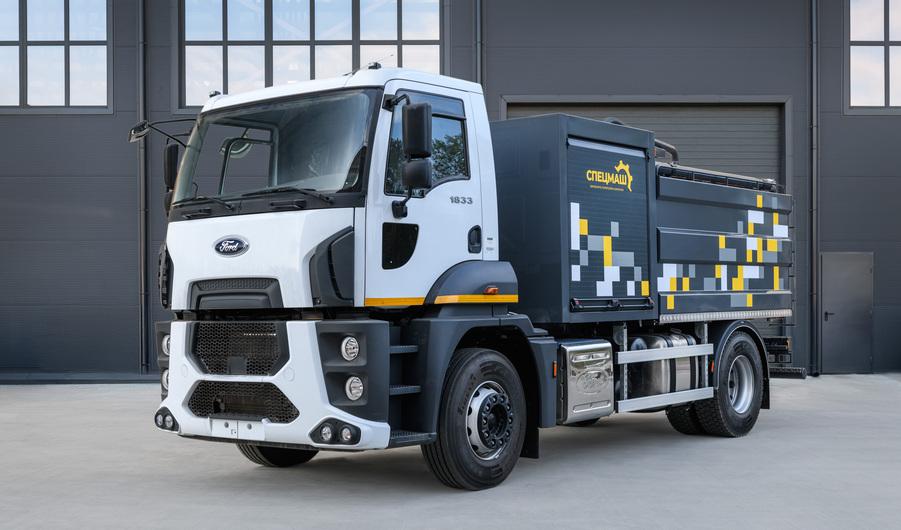

COMBINED JETTING AND VACUUM TRUCK
VEHICLES ARE DESIGNED FOR:
- Emergency and preventive cleaning of the sewer and drain pipes, the cesspools, sewage wells and liquidation of clogs in the sewage system with pressurized water and dirty water transportation to the disposal sites.
PRODUCT DESCRIPTION
It is possible to mount the equipment on chassis:
- Ford
- Howo
- Sinotruk
- Scania
- Hyundai
- Iveco
- Volvo
- MAN
- Mercedes-Benz
- Renault
- JAC.
Application area: municipal services of cities and towns.
Purpose: mechanized cleaning of pipelines of urban stormwater and sewerage networks from blockages, cleaning of filled sewer wells, cesspools and sumps from silt, sand and other deposits and their removal to the place of disposal.
Performs the functions of:
- vacuum machine (suction of liquid fractions from sewer wells and sumps);
- sludge suction machine (erosion of dense sludge deposits with their subsequent suction from wells and settling tanks);
- a sewer jetting machine (preventive cleaning of drainage and sewer networks, elimination of accidents in case of blockages).
Main features:

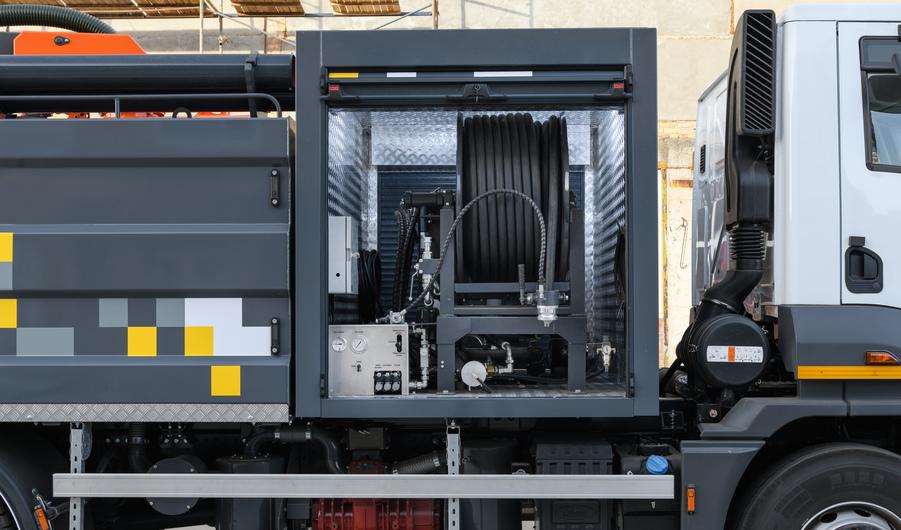

- Cleaning of drainage and sewerage networks from all types of blockages and deposits with high-pressure water jets.

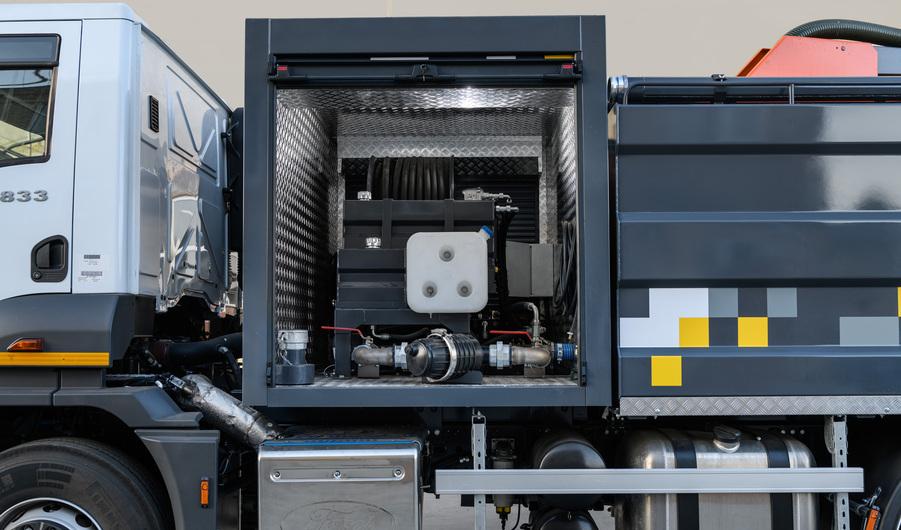

- A diesel-poweredheater maintains a positive temperature in the working compartment in the cold season and a special panel with thermal insulation filler to keep the heat in.
- Antifreeze tank to prevent freezing of the high-pressure water pump cavities.
- Special headlight for easy operation in the dark.
- Thesludge isdischarged by dumping.
- The outlet , through which water begins to be discharged when the limit level in the tank is reached, signaling that filling should be stopped. Thus, the tanks are protected from destruction or deformation that would occur when the pressure in the tank increases.
- A manhole with a slide gate that can be used both to fill the tank with low-density waste and to drain it.
- A sealing gasket that ensures the tightness of the tank.
- Suction boom, with an angle of up to 300° , which allows you to reach hard-to-reach places.
- A safety valve is provided to limit excessive pressure in the tank when unloading sludge.
Main characteristics
| volume of the sludge tank | m3 | 5 | 6 |
| volume of the jetting tank | m3 | 4 | 5 |
| Maximum vacuum created by the vacuum pump | MPa | 0,085 | 0,085 |
| Maximum suction depth | m, not less than | 6,5 | 6,5 |
| water pump performance | l/min | 122 | 122 |
| operating pressure of the water pump | Mpa | 16 | 19 |
| performance of the vacuum pump | m3/h | 390 | 730 |
| diameter of the cleaning pipes | mm | 150-1000 | 150-1000 |
| length of the high pressure hose | м | 100 | 100 |
| angle of elevation of the tank | degree | 45 | 45 |
| Tank filling speed | min | 6-8 | 6-8 |
| speed of emptying the tank by gravity | m3/year | 35 | 35 |
| length (installation) | mm | 5350 (4900) | 5350 (4900) |
| Width | mm | 2550 | 2550 |
| Height | mm | 2280 | 2280 |
| Weight | kg | 4600 | 6100 |
volume of the sludge tank
m3
volume of the jetting tank
m3
Maximum vacuum created by the vacuum pump
MPa
Maximum suction depth
m, not less than
water pump performance
l/min
operating pressure of the water pump
Mpa
performance of the vacuum pump
m3/h
diameter of the cleaning pipes
mm
length of the high pressure hose
м
angle of elevation of the tank
degree
Tank filling speed
min
speed of emptying the tank by gravity
m3/year
length (installation)
mm
Width
mm
Height
mm
Weight
kg
volume of the sludge tank
5
volume of the jetting tank
4
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6,5
water pump performance
122
operating pressure of the water pump
16
performance of the vacuum pump
390
diameter of the cleaning pipes
150-1000
length of the high pressure hose
100
angle of elevation of the tank
45
Tank filling speed
6-8
speed of emptying the tank by gravity
35
length (installation)
5350 (4900)
Width
2550
Height
2280
Weight
4600
volume of the sludge tank
6
volume of the jetting tank
5
Maximum vacuum created by the vacuum pump
0,085
Maximum suction depth
6,5
water pump performance
122
operating pressure of the water pump
19
performance of the vacuum pump
730
diameter of the cleaning pipes
150-1000
length of the high pressure hose
100
angle of elevation of the tank
45
Tank filling speed
6-8
speed of emptying the tank by gravity
35
length (installation)
5350 (4900)
Width
2550
Height
2280
Weight
6100
