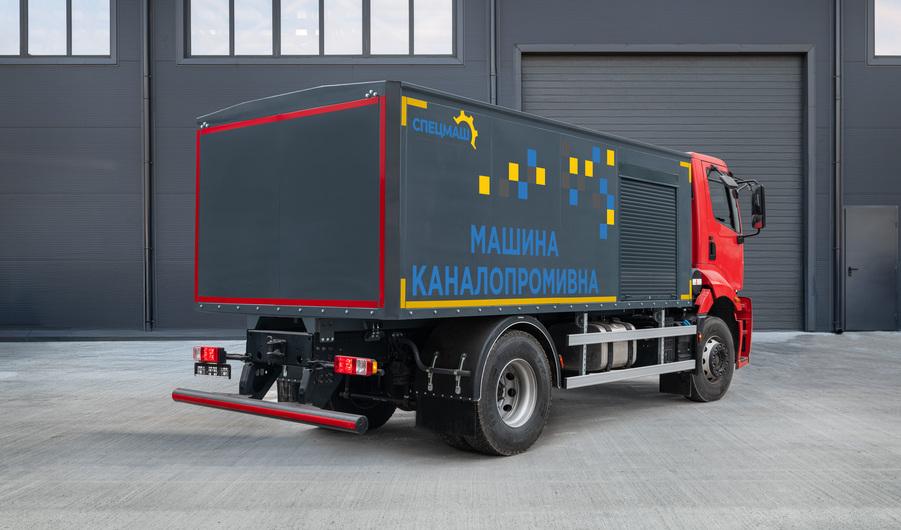

SEWER JET TRUCKS

slide-1
slide-2
slide-3
slide-4
slide-5
slide-6
slide-7
slide-8
slide-9
slide-10
VEHICLES ARE DESIGNED FOR:
  • mechanized emergency and preventive cleaning of sewer and drainage pipes with a diameter of 150-1000 mm, liquidation of clogs, mud, sediment in sewer systems
Find out the price

PRODUCT DESCRIPTION

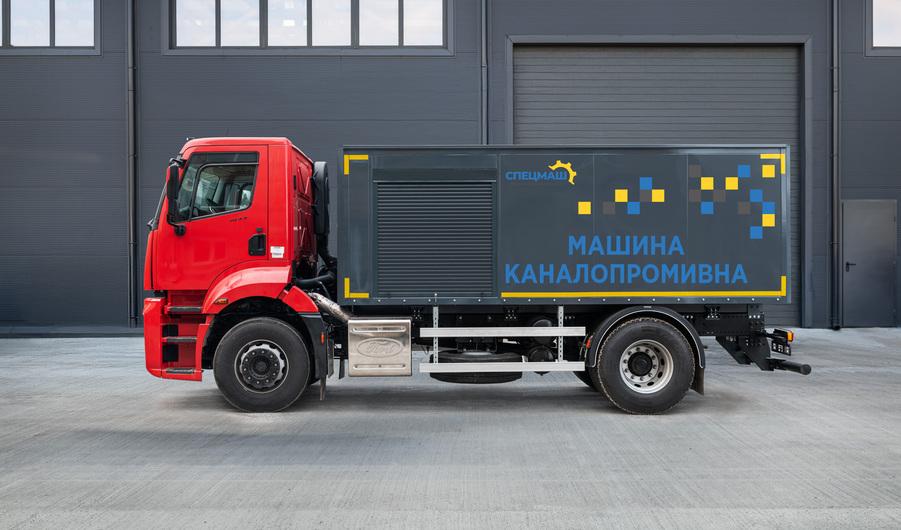

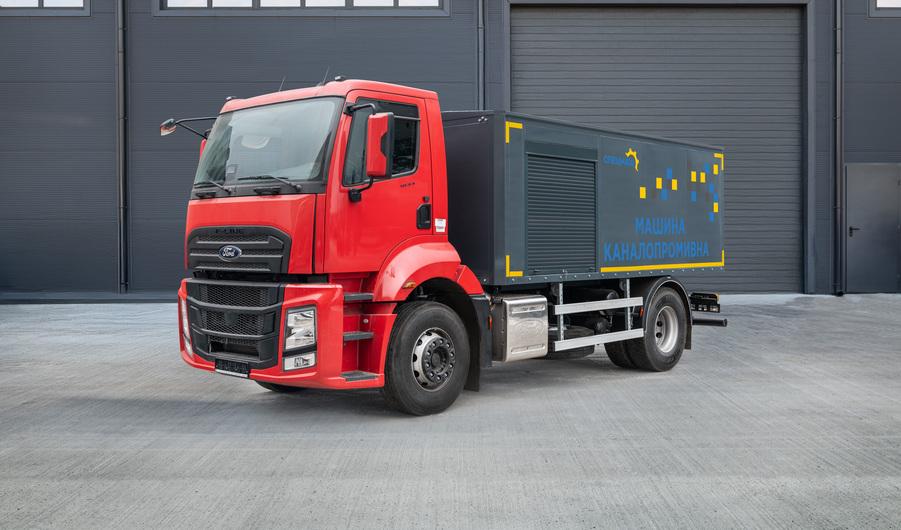

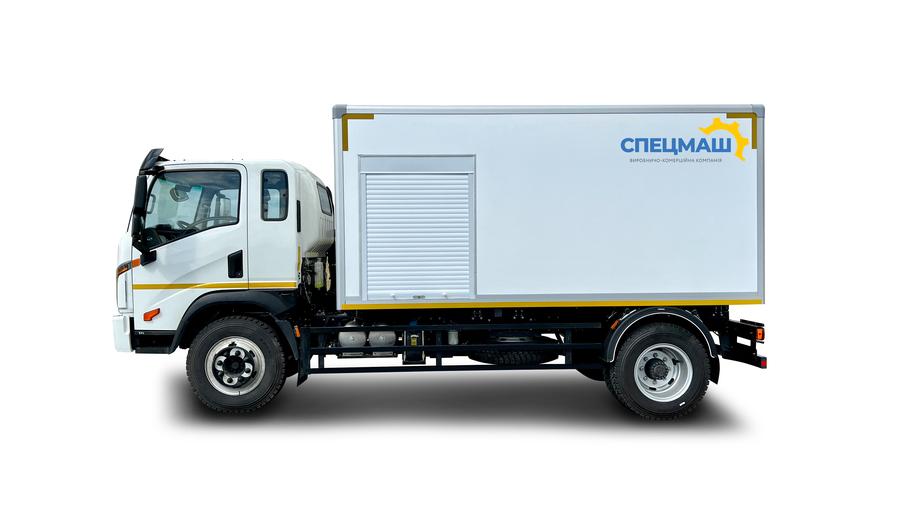

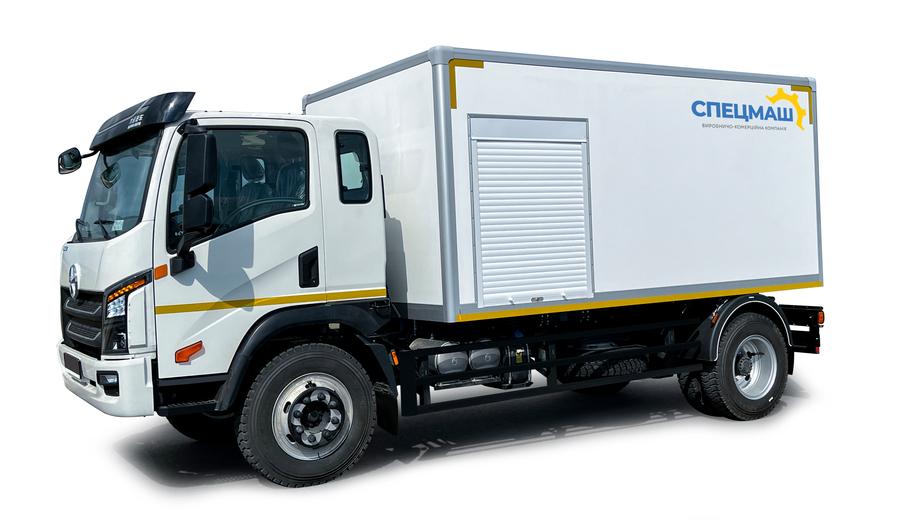

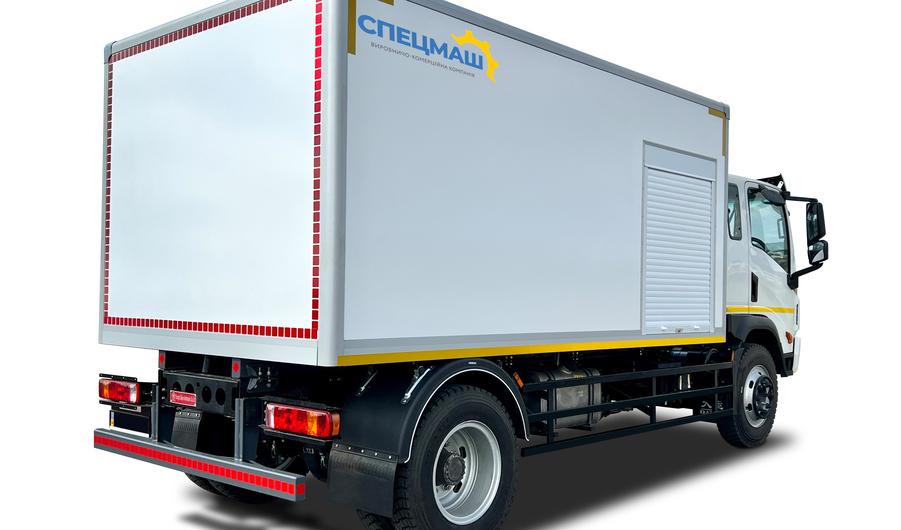

It is possible to mount the equipment on chassis:
  • FORD CARGO
  • JAC
  • КрАЗ
  • RENO

Area of use: municipal services of cities and urban-type settlements.


Purpose: mechanized emergency and preventive cleaning of sewer and drainage pipes with a diameter of 150-1000 mm, elimination of blockages, silt, deposits in sewer systems.


Equipment:

  • Tank
  • Vacuum pump with drive
  • Pipelines of the vacuum pumping system
  • Electrical equipment.

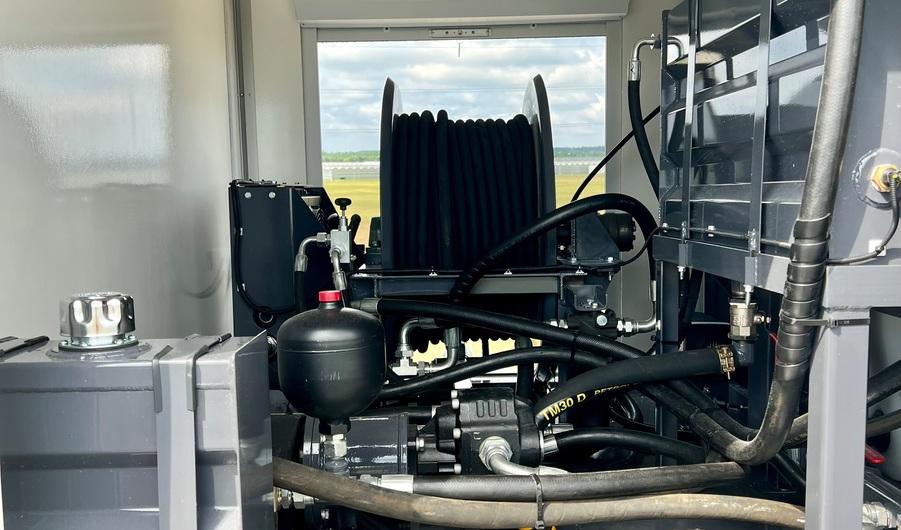

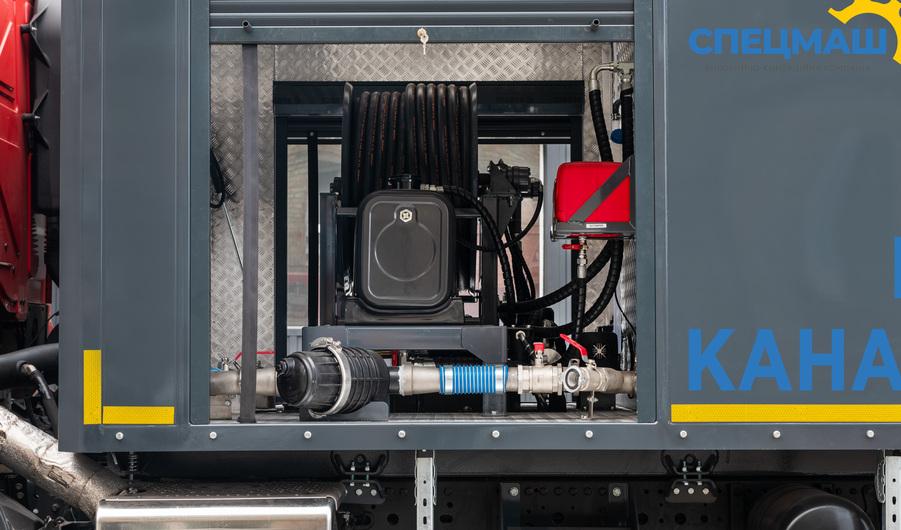

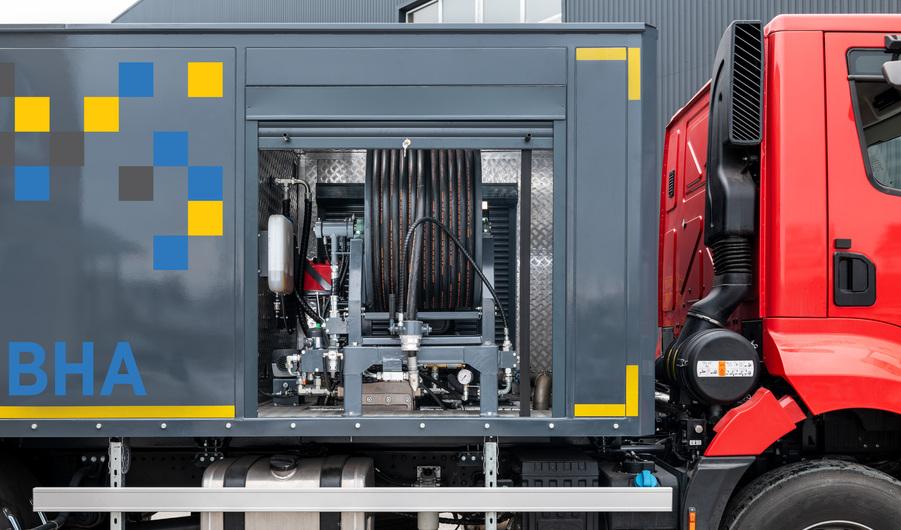

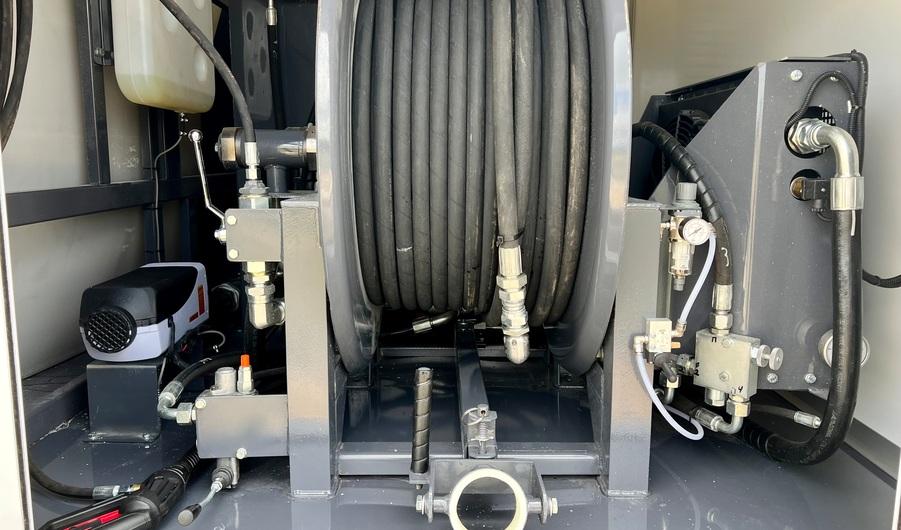

  • Drum with wound sleeve
  • Hydraulic system
  • Channel washing nozzles


Principle of operation: water coming out of the nozzle of the flushing head under high pressure and at high speed creates a reactive force, as a result of which the head moves along the pipe, carrying the sleeve with it and simultaneously eroding deposits in the pipe.


Main features:


  • A wide variety of drain cleaning nozzles that perform the following functions: for hydrodynamic cleaning of pipes, for removing emergency blockages, for combating fatty deposits, root formations in pipes. The nozzles are made of modern high-quality material, which ensures durable and reliable operation.
  • Water pump with a drive, capable of creating high pressure water pressure.
  • Theoutlet, in the front part at the bottom, is used both for water supply during machine operation and for filling the tank with water in the period between work functions.
  • A water discharge outlet is provided in the upper part of the tank. The outlet of a pipe through which water is discharged when the water level in the tank reaches the limit, signaling that filling should be stopped.

Main characteristics
Tank volume м3 5 6 8 10
Diameter of treatment pipes mm 150-1000 150-1000 150-1000 150-1000
Water consumption l/min 122 122 122 122
Working pressure of the water pump Mpa 16 16 19 19
Length mm 3900 4200 4900 5700
Width of the cistern mm 2400 2400 2550 2550
Height mm 1780 1980 1980 1980
Tank volume
м3
Diameter of treatment pipes
mm
Water consumption
l/min
Working pressure of the water pump
Mpa
Length
mm
Width of the cistern
mm
Height
mm
Tank volume
5
Diameter of treatment pipes
150-1000
Water consumption
122
Working pressure of the water pump
16
Length
3900
Width of the cistern
2400
Height
1780
Tank volume
6
Diameter of treatment pipes
150-1000
Water consumption
122
Working pressure of the water pump
16
Length
4200
Width of the cistern
2400
Height
1980
Tank volume
8
Diameter of treatment pipes
150-1000
Water consumption
122
Working pressure of the water pump
19
Length
4900
Width of the cistern
2550
Height
1980
Tank volume
10
Diameter of treatment pipes
150-1000
Water consumption
122
Working pressure of the water pump
19
Length
5700
Width of the cistern
2550
Height
1980
