MANUAL REAR LOAD GARBAGE TRUCK

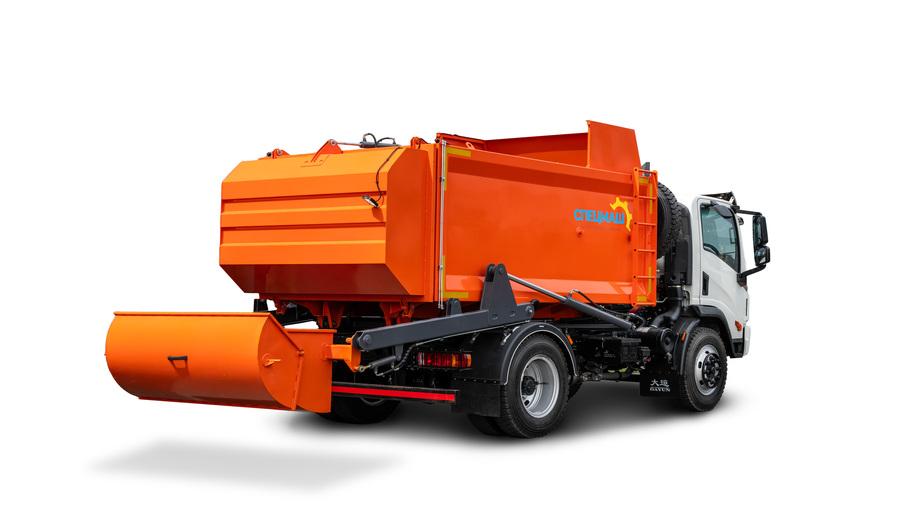

slide-1

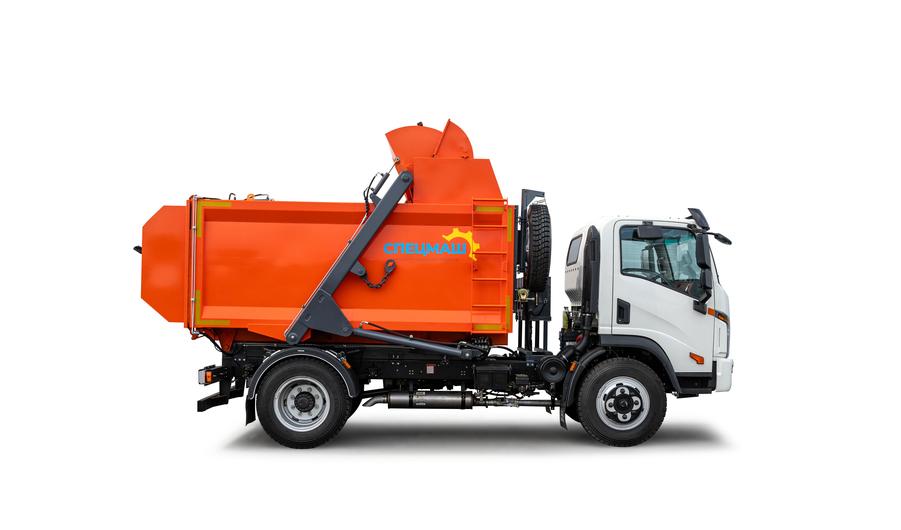

slide-2

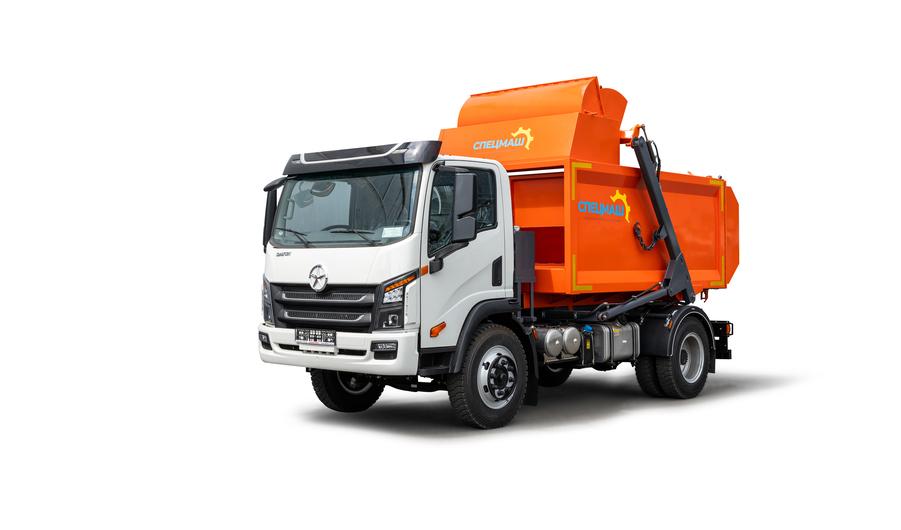

slide-3
VEHICLES ARE DESIGNED FOR:
  • Manual collection of solid municipal waste in communal services of cities and urban-type settlements, waste compaction, transportation and discharge at places of disposal.
Find out the price

PRODUCT DESCRIPTION

It is possible to mount the equipment on chassis:
  • Howo
  • Sinotruk
  • Scania
  • Hyundai
  • МАN
  • Dong Feng
  • Ford
  • Volvo
  • Iveco
  • Isuzu
  • Mercedes-Benz.

MANUAL REAR LOAD GARBAGE TRUCK


Area of use: municipal services of cities and urban-type settlements.


Purpose: collection of the previously manually collected to eject bin solid municipal waste by using a manipulator designed for containers with a capacity of 0.75 to 1.1 m3, waste compaction , transportation and discharge at places of disposal.


Equipment:


  • Body: frame strong welded structure designed for receiving, compacting and accumulating solid waste. The body is equipped with eyelets for attaching the tailgate.
  • Intake window: located on the roof of the body, equipped with protective shields on three sides.
  • Lifters: reinforced pins are welded to the body frame, on which two symmetrically placed bucket lifts rotate.
  • Tightness: To ensure the integrity of the structure, a rubber seal is installed on the rear side of the body and locks are installed on the outside.
  • Loading bucket: A sheet steel container with two axes of rotation, suspended from the bucket lift arm.
  • Bucket lid: to prevent solid waste from falling out during loading, the bucket is equipped with a lid that closes it before the levers are raised.


Main features:


  • Manual loading of waste into the loading bucket.
  • Waste compaction in the body with a push plate.
  • Unloading by tipping the body and push plate.
  • Hydraulic drive


Main characteristics
Body capacity, m3 9 10 12 14
Payload, kg 2600 2950 3850 4200
Loading system manual\hydraulic manual\hydraulic manual\hydraulic manual\hydraulic
Operating pressure, bar 170-210 170-210 170-210 170-210
Bin lifting capacity of manipulator(ladle), kg up to 500 up to 500 up to 500 up to 500
Chassis configuration 4x2 4x2 4x2 4x2
Length 1, mm 5530 6695 6150 6090
Length 2, mm 3400 4400 3820 3800
Height 2, mm 2765 3045 2765 3045
Height 1, mm 1360 1870 1360 1870
Width1, mm 2245 2245 2245 2245
Width2, mm 2040 2040 2040 2040
Width3, mm 2300 2300 2300 2300
Pressing force, kN 79 79 79 79
Unladen weight, kg 2235 3225 2350 2980
Body capacity, m3
9
Payload, kg
2600
Loading system
manual\hydraulic
Operating pressure, bar
170-210
Bin lifting capacity of manipulator(ladle), kg
up to 500
Chassis configuration
4x2
Length 1, mm
5530
Length 2, mm
3400
Height 2, mm
2765
Height 1, mm
1360
Width1, mm
2245
Width2, mm
2040
Width3, mm
2300
Pressing force, kN
79
Unladen weight, kg
2235
Body capacity, m3
10
Payload, kg
2950
Loading system
manual\hydraulic
Operating pressure, bar
170-210
Bin lifting capacity of manipulator(ladle), kg
up to 500
Chassis configuration
4x2
Length 1, mm
6695
Length 2, mm
4400
Height 2, mm
3045
Height 1, mm
1870
Width1, mm
2245
Width2, mm
2040
Width3, mm
2300
Pressing force, kN
79
Unladen weight, kg
3225
Body capacity, m3
12
Payload, kg
3850
Loading system
manual\hydraulic
Operating pressure, bar
170-210
Bin lifting capacity of manipulator(ladle), kg
up to 500
Chassis configuration
4x2
Length 1, mm
6150
Length 2, mm
3820
Height 2, mm
2765
Height 1, mm
1360
Width1, mm
2245
Width2, mm
2040
Width3, mm
2300
Pressing force, kN
79
Unladen weight, kg
2350
Body capacity, m3
14
Payload, kg
4200
Loading system
manual\hydraulic
Operating pressure, bar
170-210
Bin lifting capacity of manipulator(ladle), kg
up to 500
Chassis configuration
4x2
Length 1, mm
6090
Length 2, mm
3800
Height 2, mm
3045
Height 1, mm
1870
Width1, mm
2245
Width2, mm
2040
Width3, mm
2300
Pressing force, kN
79
Unladen weight, kg
2980
